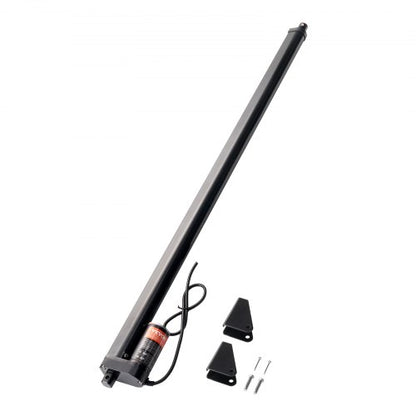

Linear Actuator 12V 50.8 cm 1.4 cm/s High Speed 99.8 kg/1000N IP54 Protection

Linear Actuator 12V 50.8 cm 1.4 cm/s High Speed 99.8 kg/1000N IP54 Protection

Regular price €63,95 EUR
Regular price Sale price €63,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Features & Details
  • Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.
  • Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.

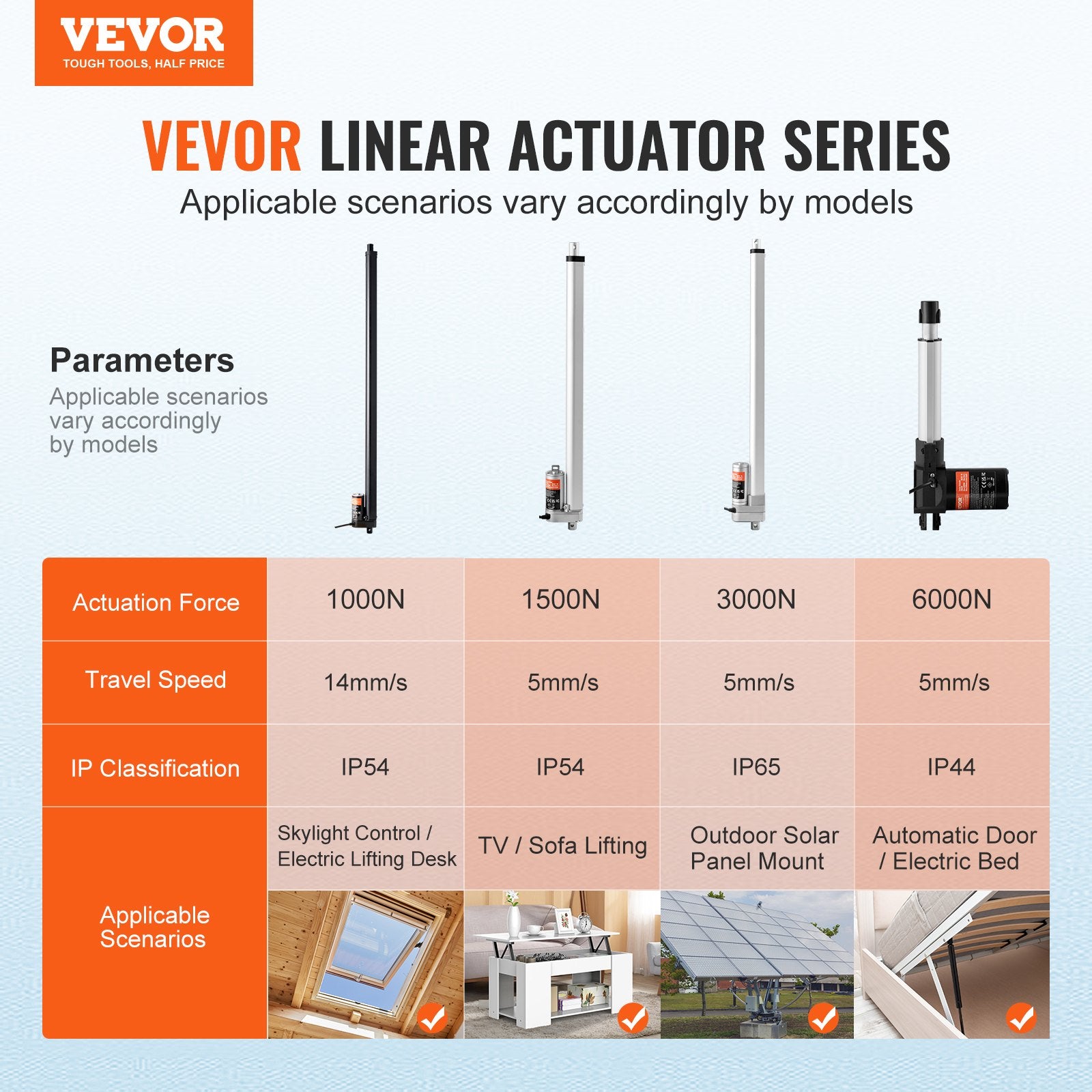

  • Versatility Unleashed: VEVOR's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

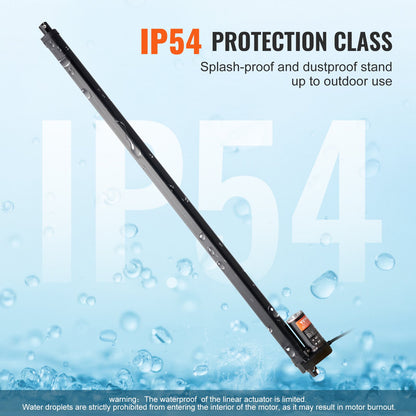

  • IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

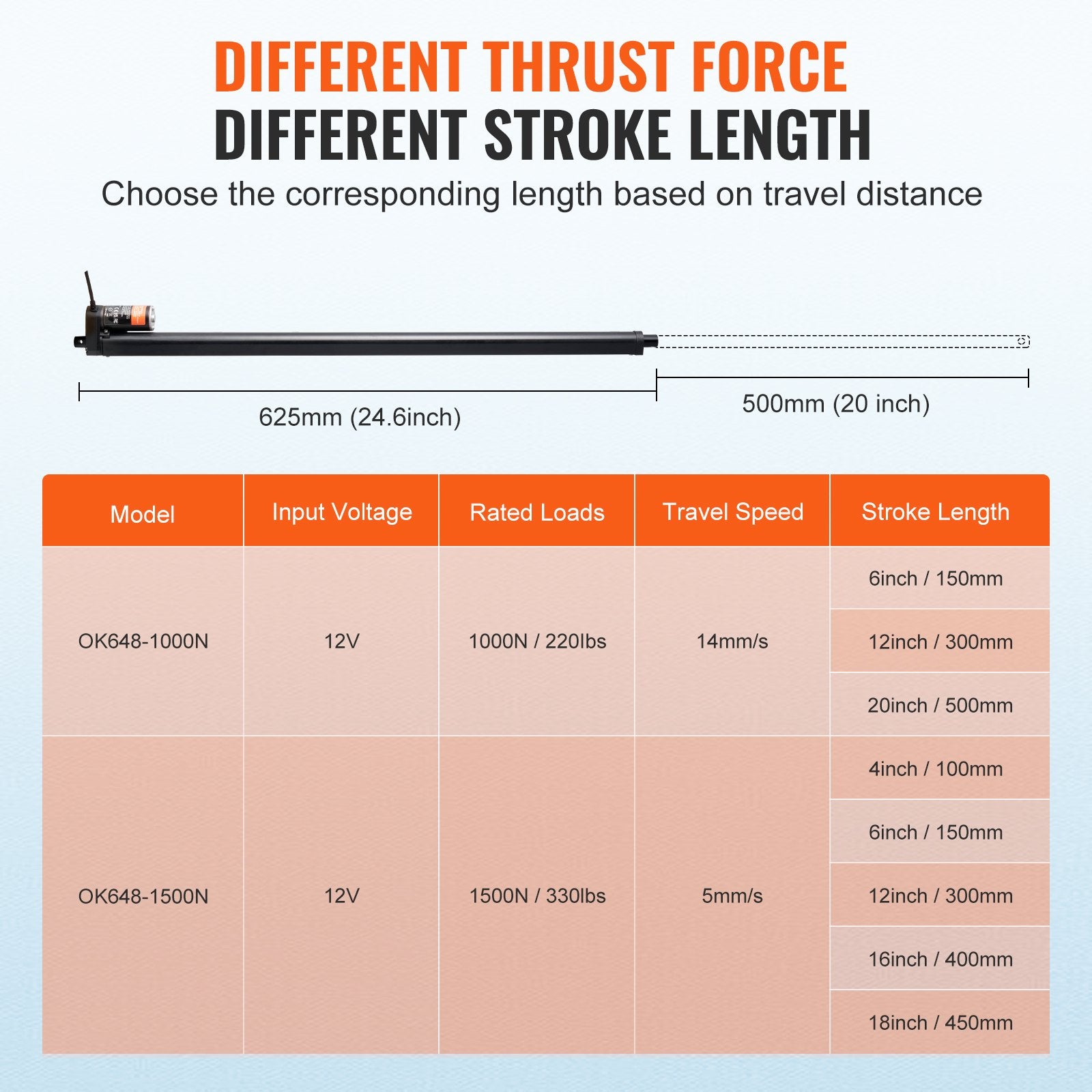

  • Key Specifications: Stroke Length: 20 inch (500mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 24.6" (625mm); Extended Length: 44.6" (1125mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

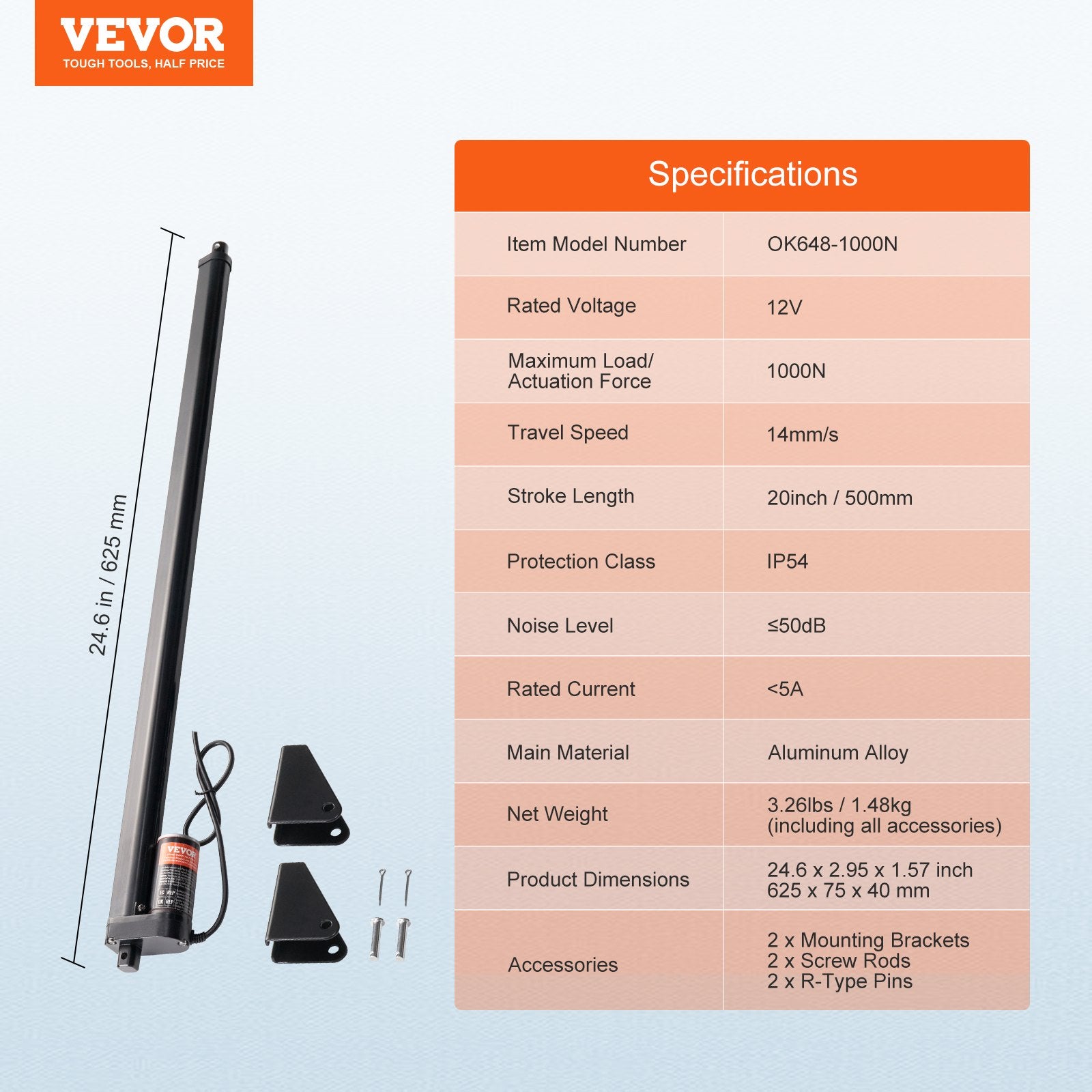

Product Specification
  • Protection Class: IP54
  • Noise Level: ≤50dB
  • Maximum Load/Actuation Force: 1000N
  • Item Model Number: OK648-1000N
  • Travel Speed: >0.55 inch/s / >14mm/s
  • Rated Current: <5A
  • Stroke Length: 20 inch / 500 mm
  • Product Dimensions: 24.6 x 2.95 x 1.57 inch / 625 x 75 x 40 mm
  • Net Weight: 3.26 lbs / 1.48 kg (including all accessories)
  • Main Material: Aluminum Alloy
  • Rated Voltage: DC12V
