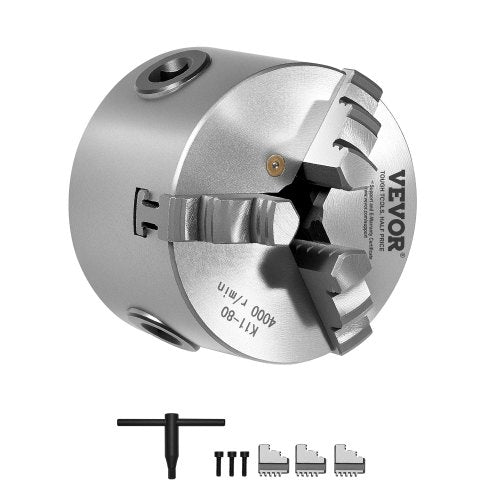

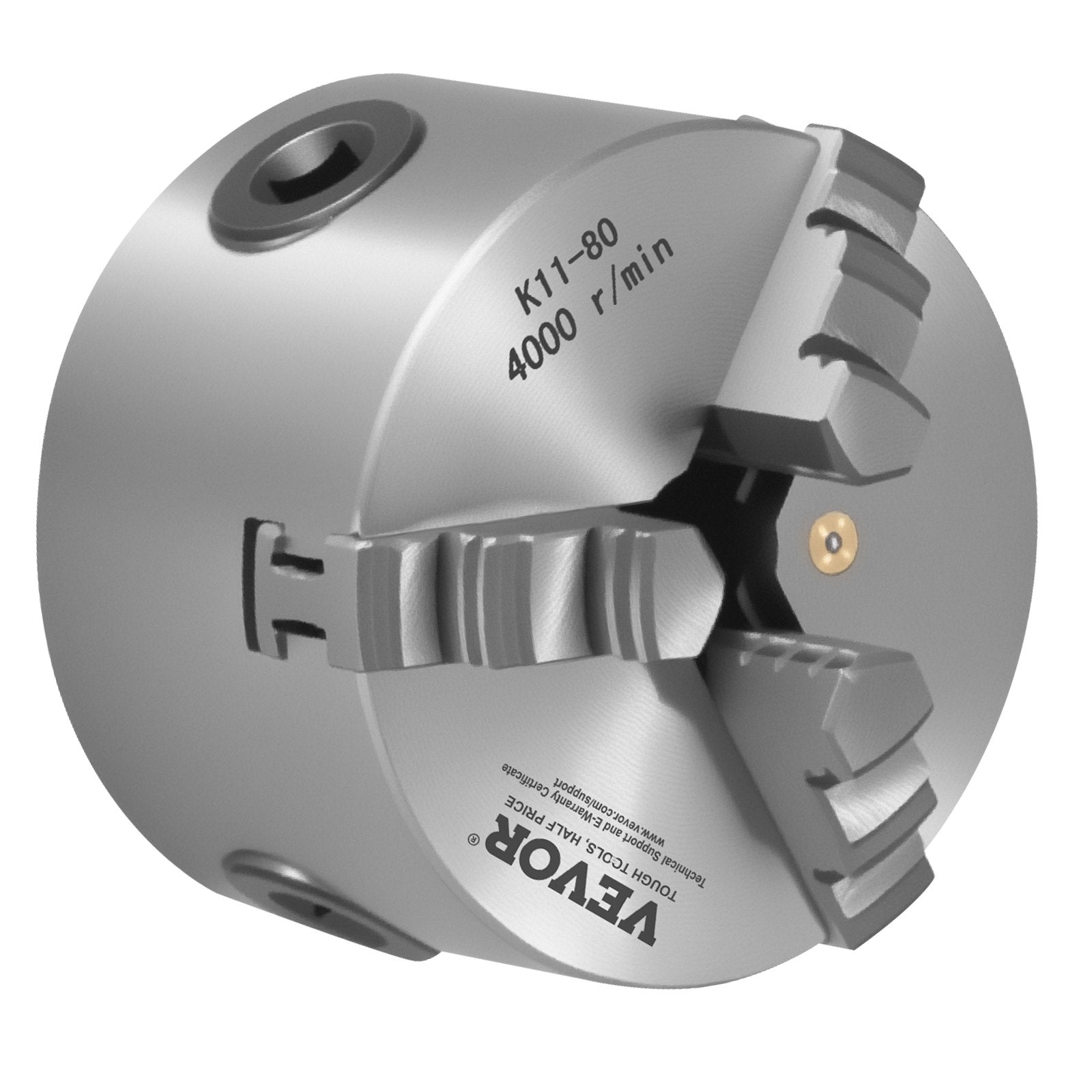

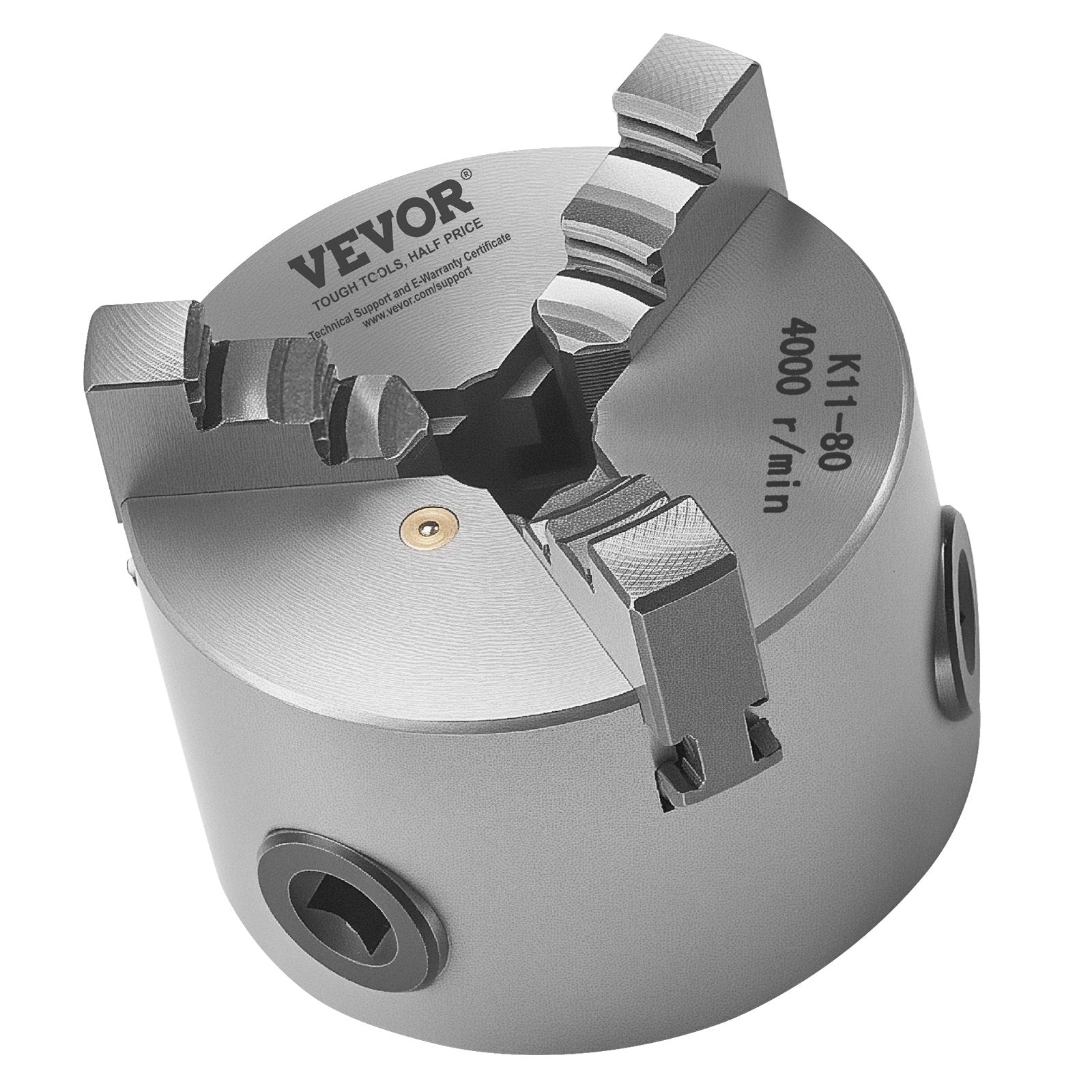

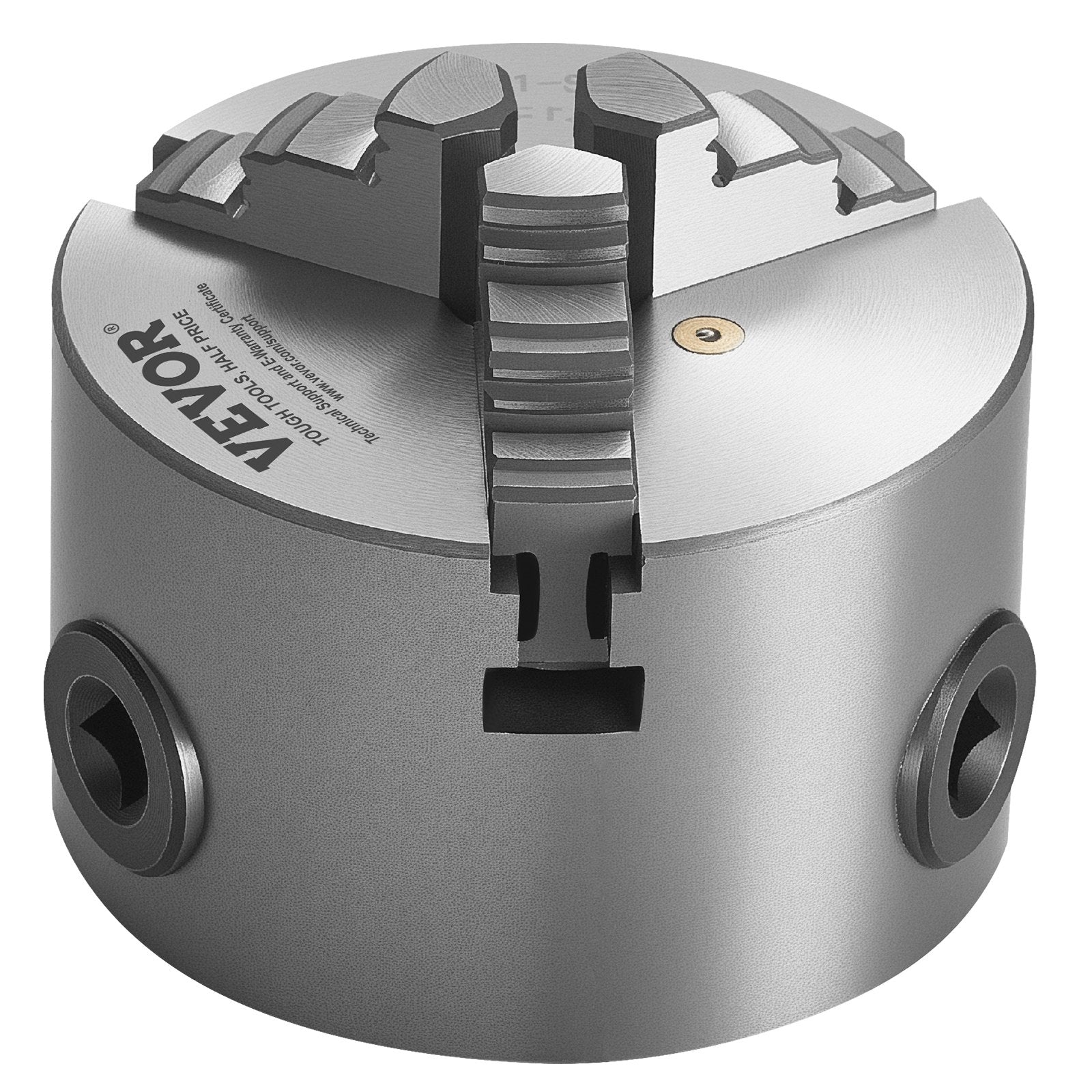

3-Jaw Lathe Chuck, 3 Inch (80 mm), Self-Centering Chuck, 0.08-2.48 in (2-63 mm) Clamping Range with T-key Fixing Screws Reversible Jaws, HT300 Material, Internal External for Wood Metal Lathe

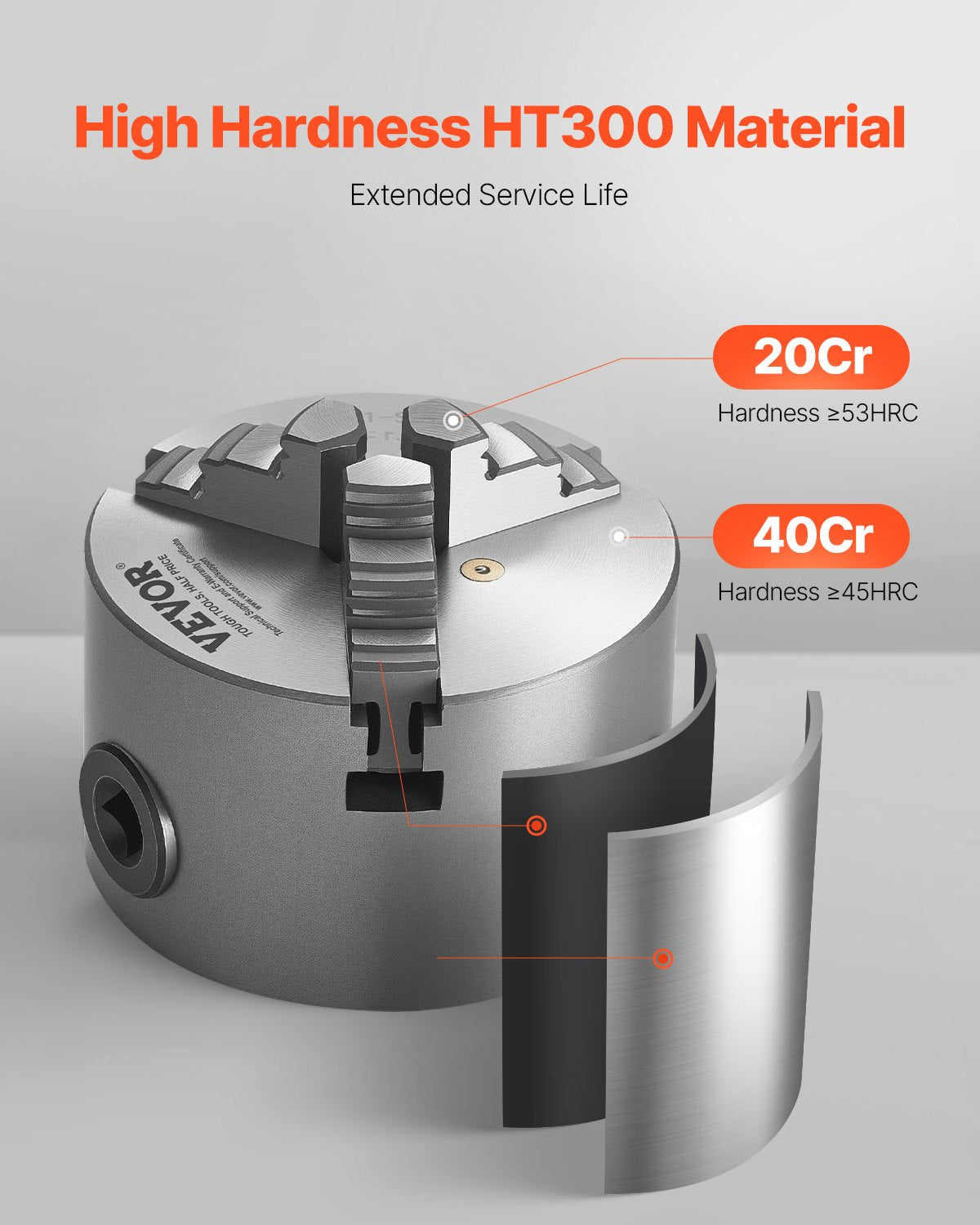

Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life

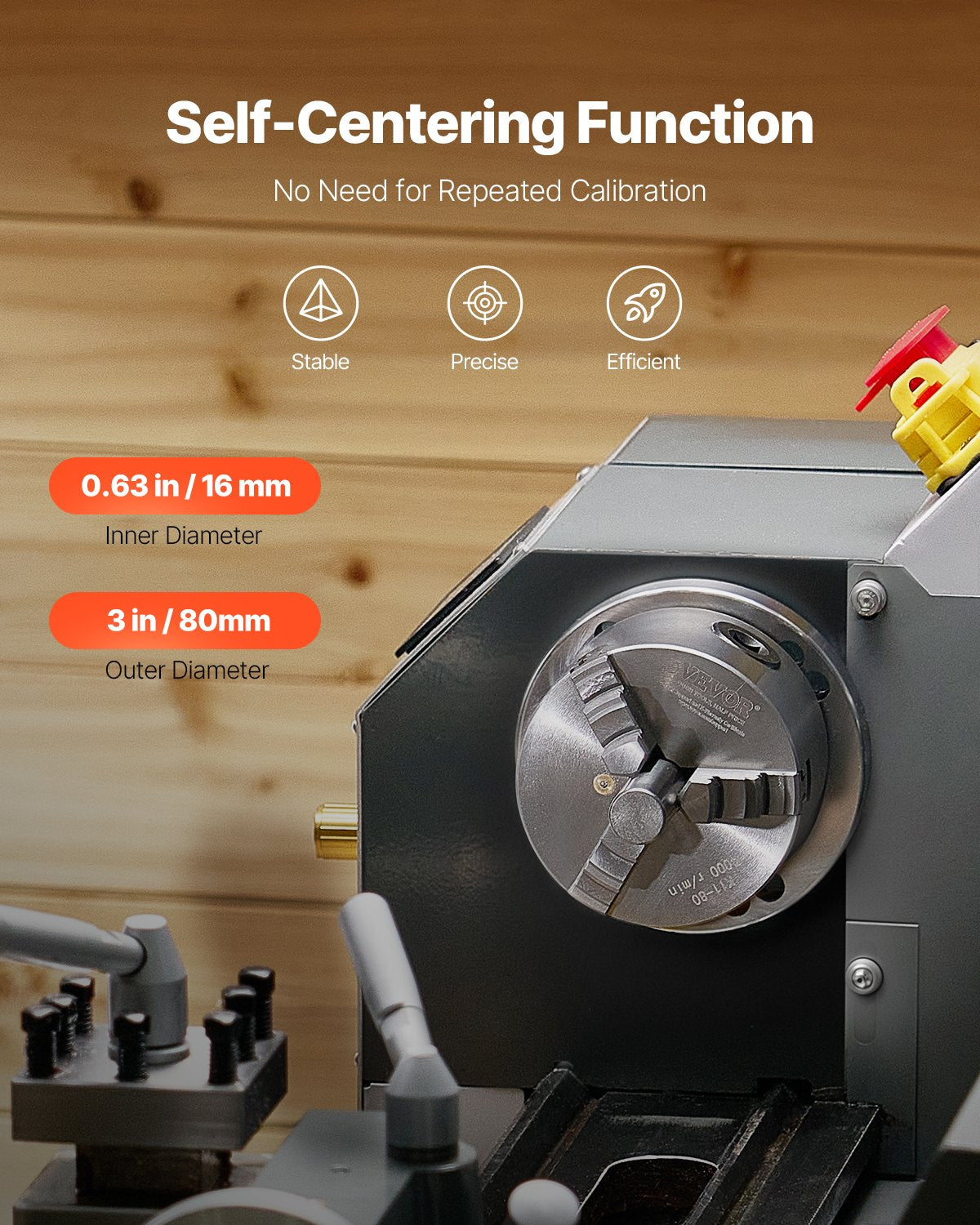

Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance
3-Inch 3-Jaw Lathe Chuck: With a 0.63 in (16 mm) inner diameter and 3 in (80 mm) outer diameter, this self centering lathe chuck clamps workpieces ranging from 0.08-2.48 in (2-63 mm), making it ideal for a wide variety of workpiece sizes

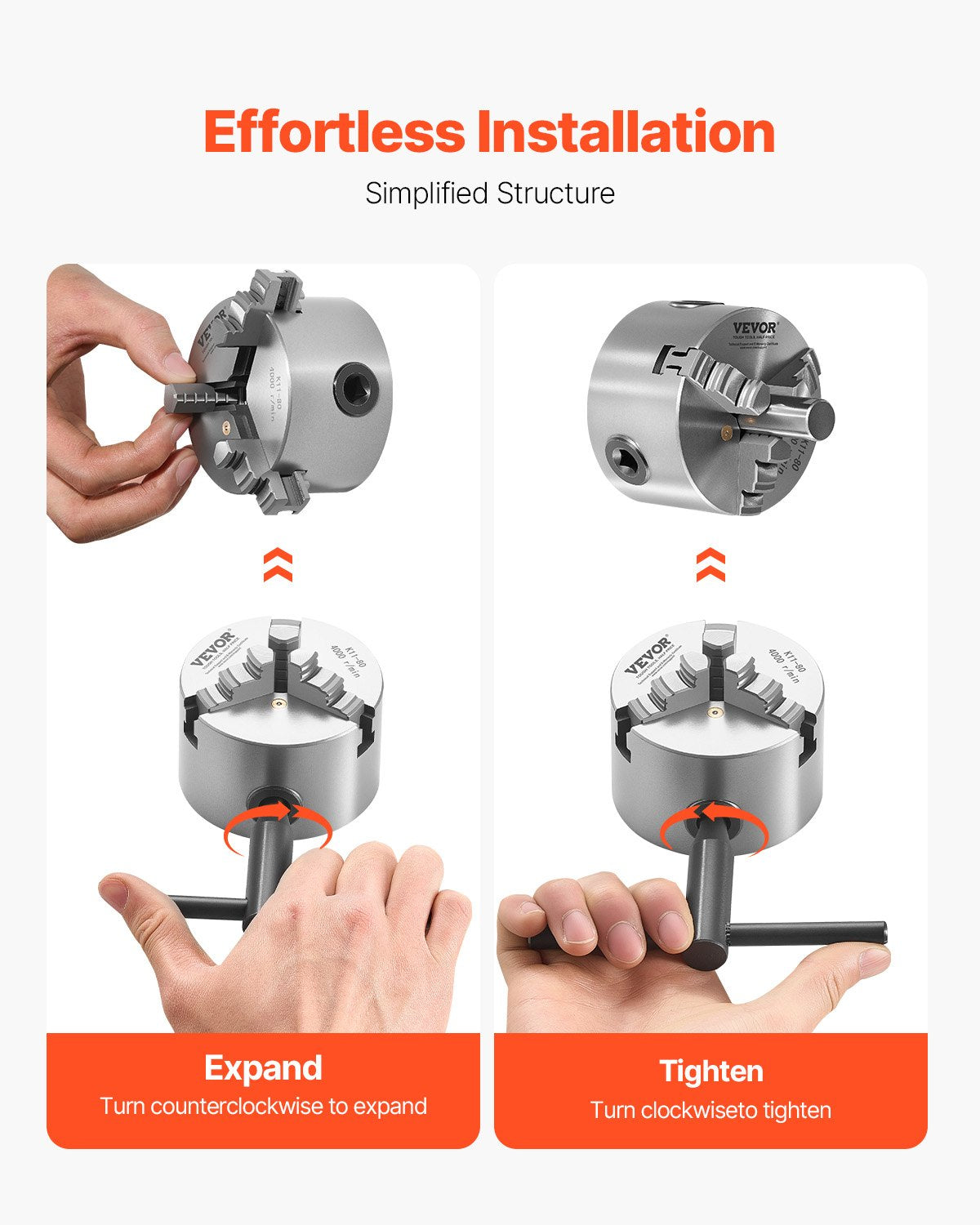

Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup

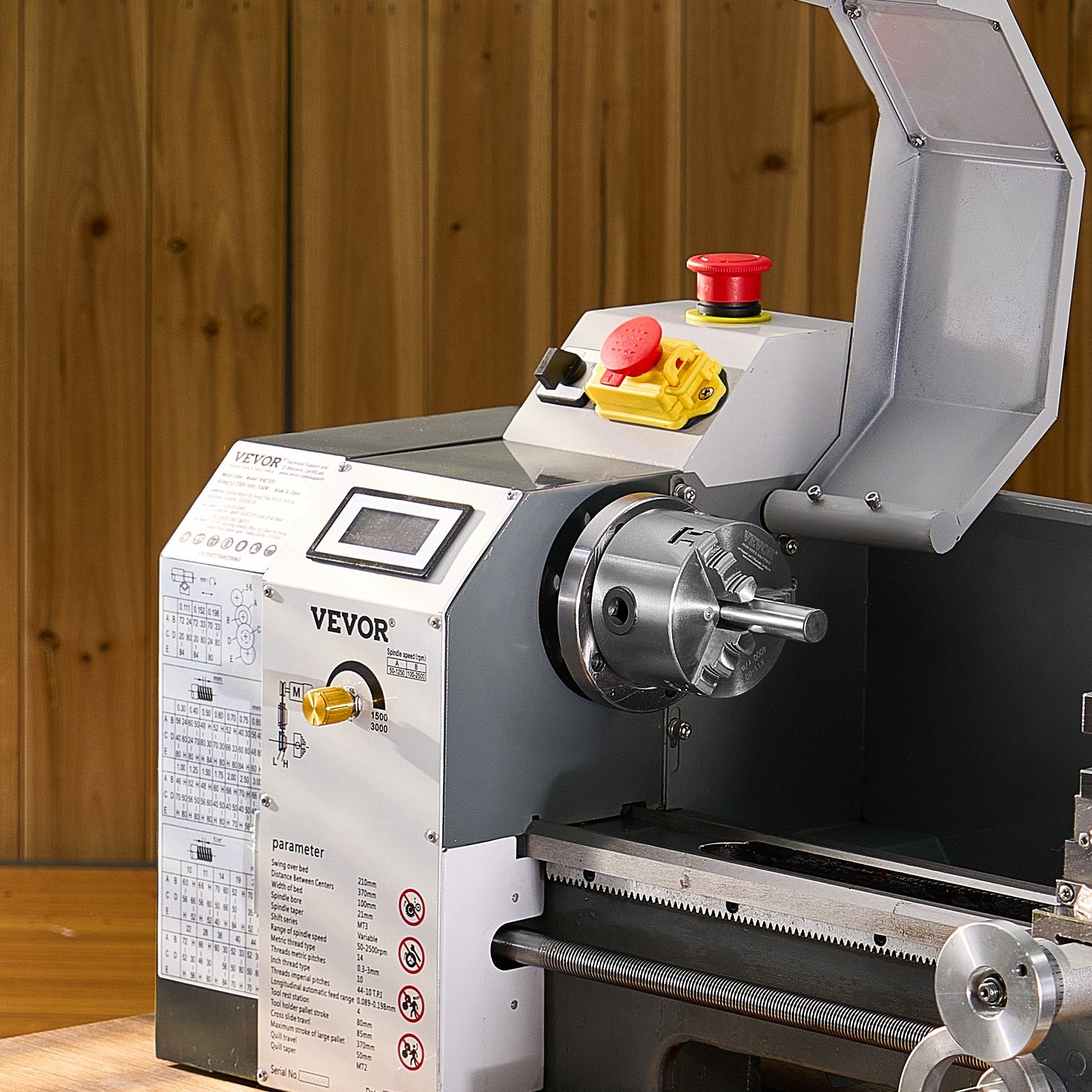

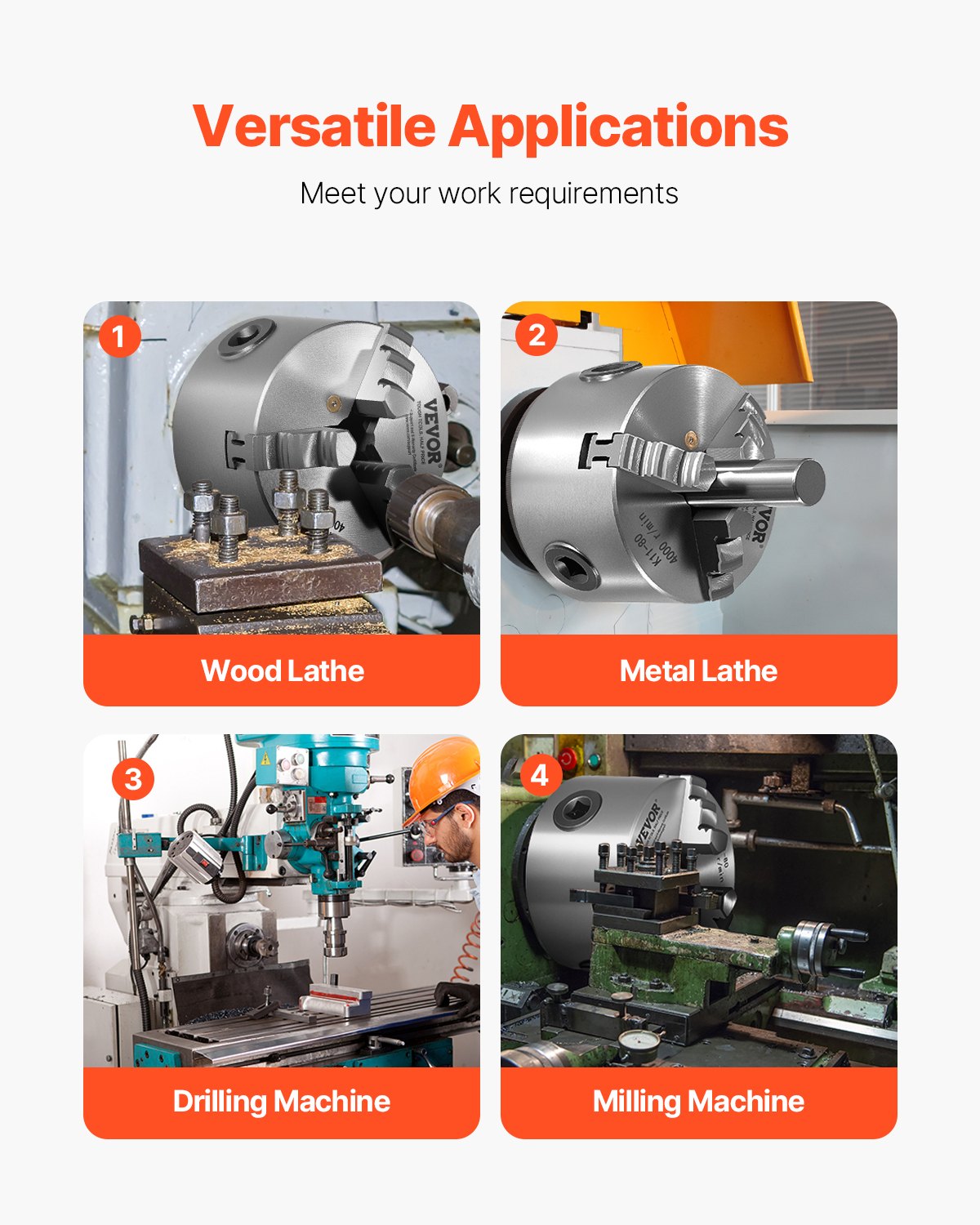

Ideal for Most Lathes: Whether you're working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time

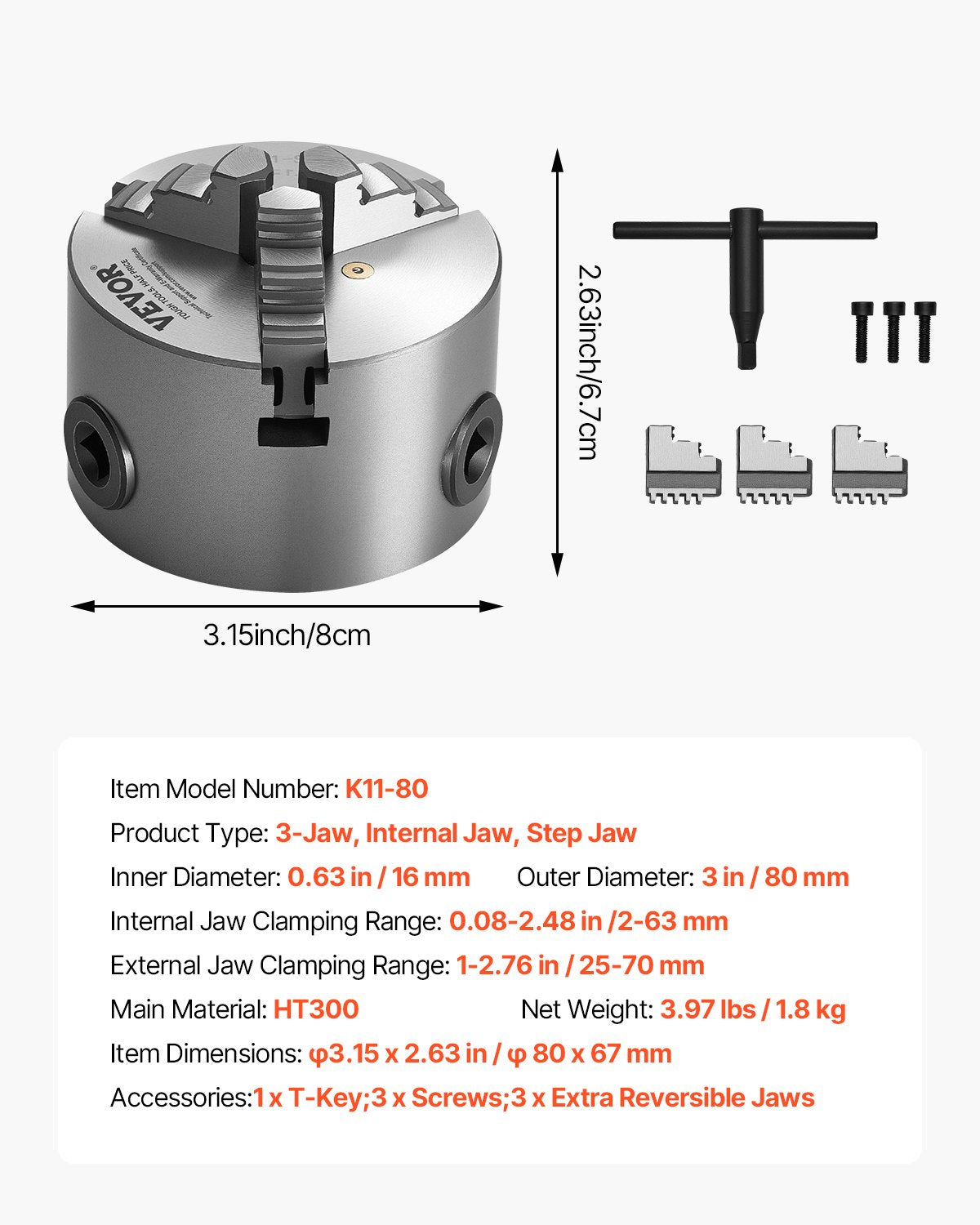

Product Specification
Outer Diameter: 3 in / 80 mm
Product Type: 3-Jaw, Internal Jaw, Step Jaw
Inner Diameter: 0.63 in / 16 mm
Item Model Number: K11 80
Item Dimensions: φ3.15 x 2.63 in / φ 80 x 67 mm

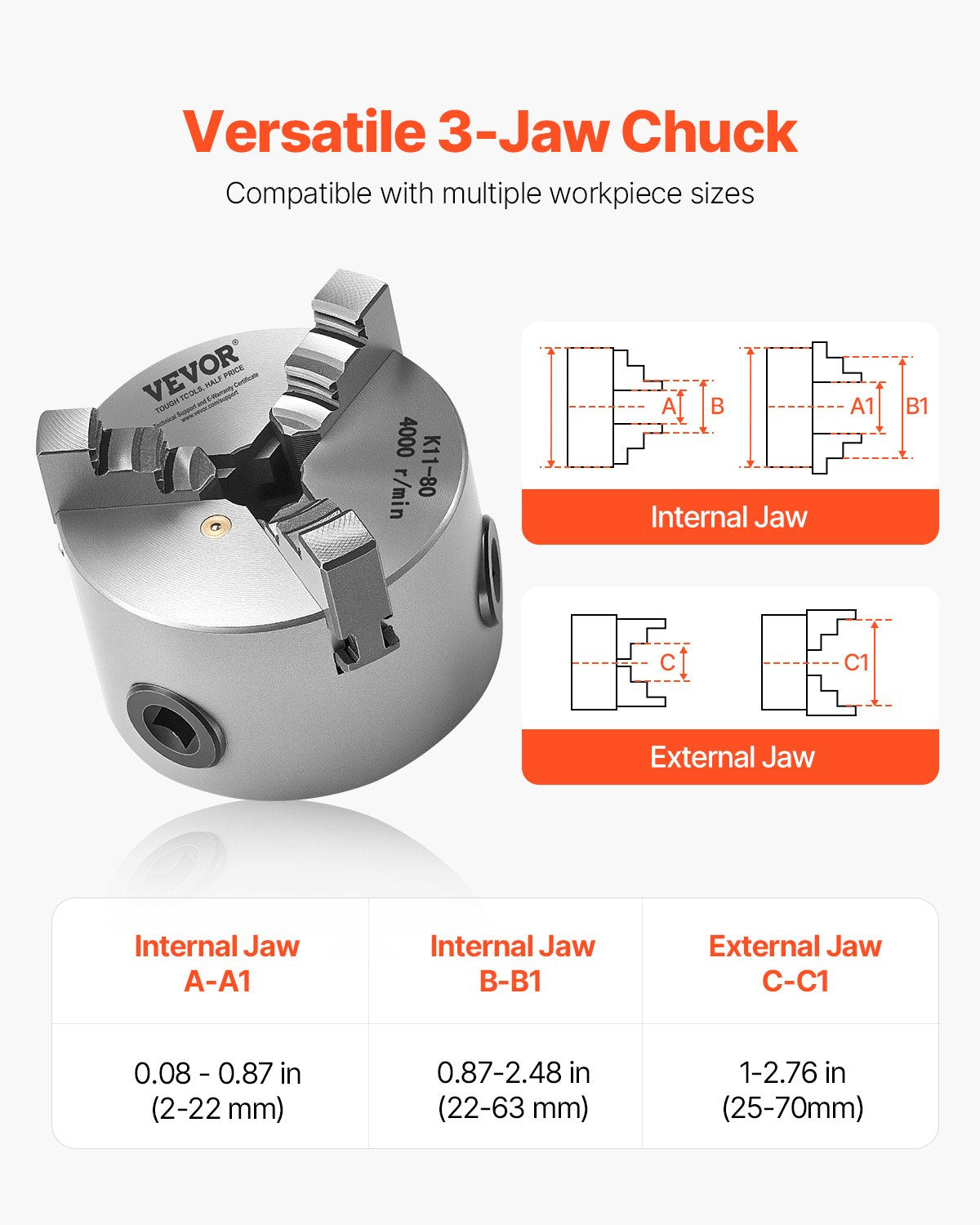

Internal Jaw Clamping Range: 0.08-2.48 in /2-63 mm
